ADC Adstation™ 56122 3.5V Wall Coax Plus Ophthalmoscope

€774,34 incl. btw
€639,95 excl. btw

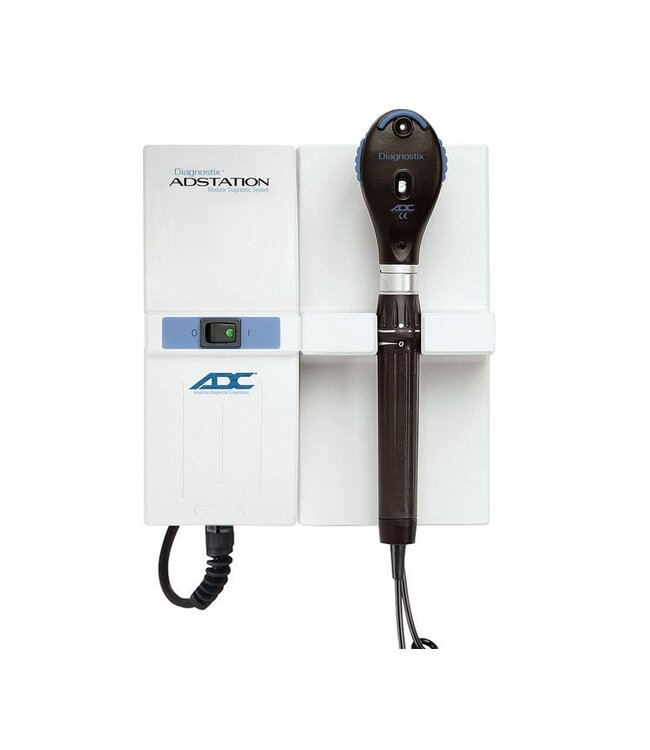

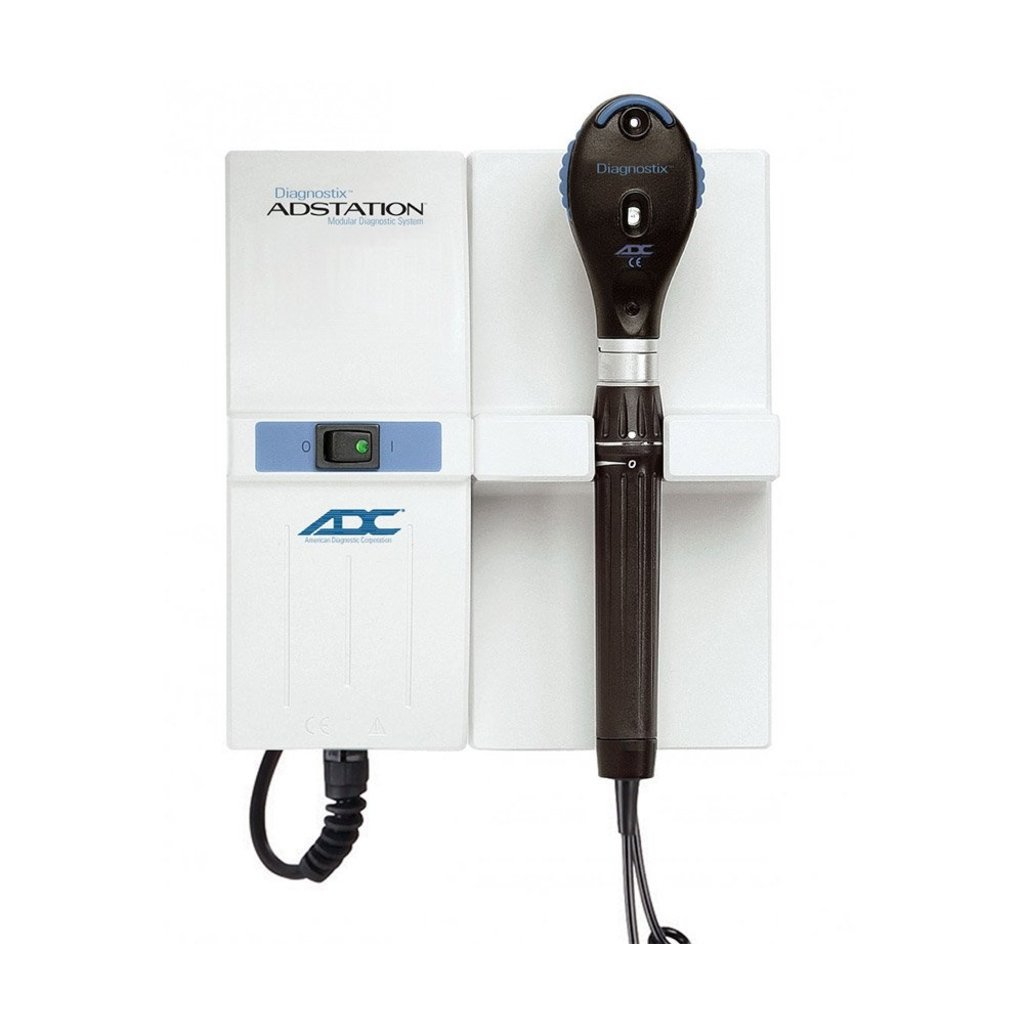

Complete instrument includes 3.5V Coax Ophthalmoscope head and wall transformer power supply
Article number: 56122X-EU

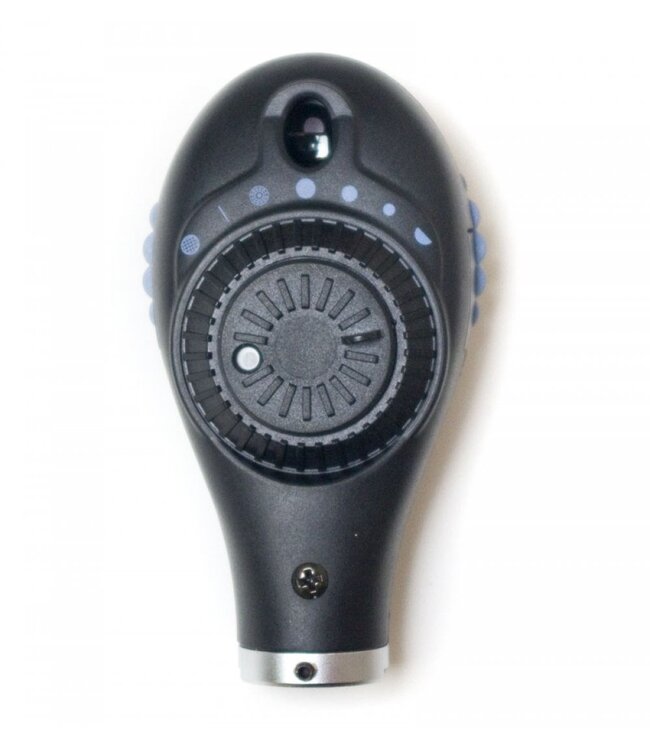

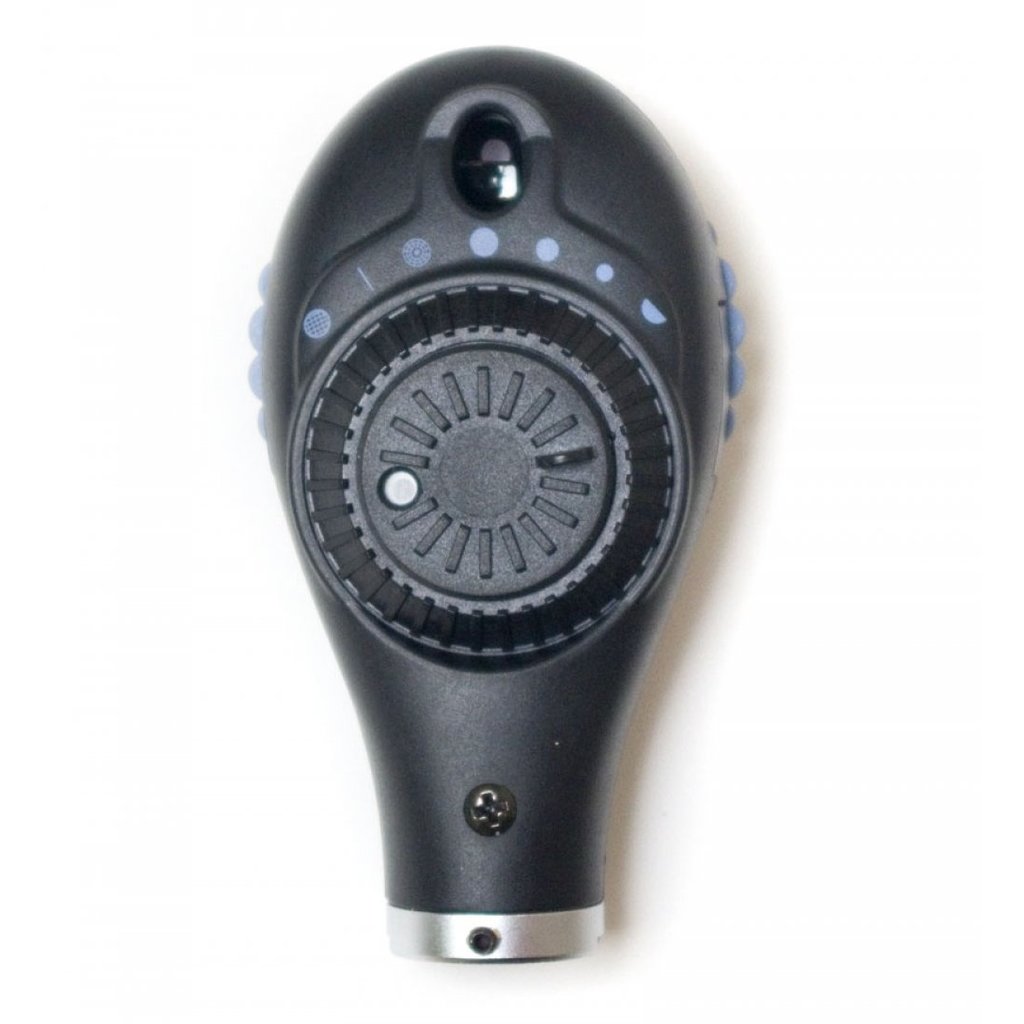

Coax Plus Ophthalmoscope Head (p/n 5442) features:

High-performance aspherical condenser lens reduces corneal reflection
Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s Equation)
Ergonomic design and integral thumb rest improves stability and allows one-finger control of all functions
Synthetic rubber brow rest facilitates use with practitioner eyeglasses
Dust proof
Magnified, illuminated aperture viewing window
Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
Anti-theft locking feature is standard

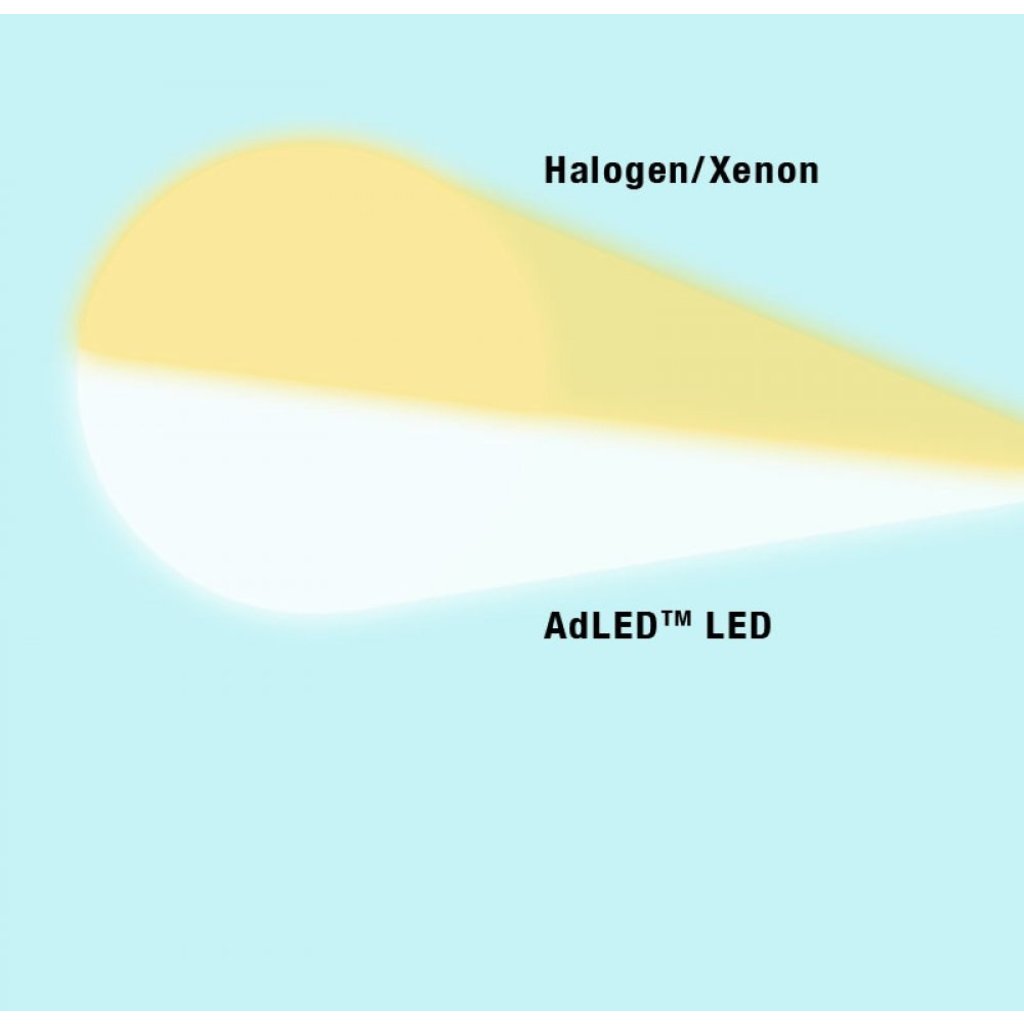

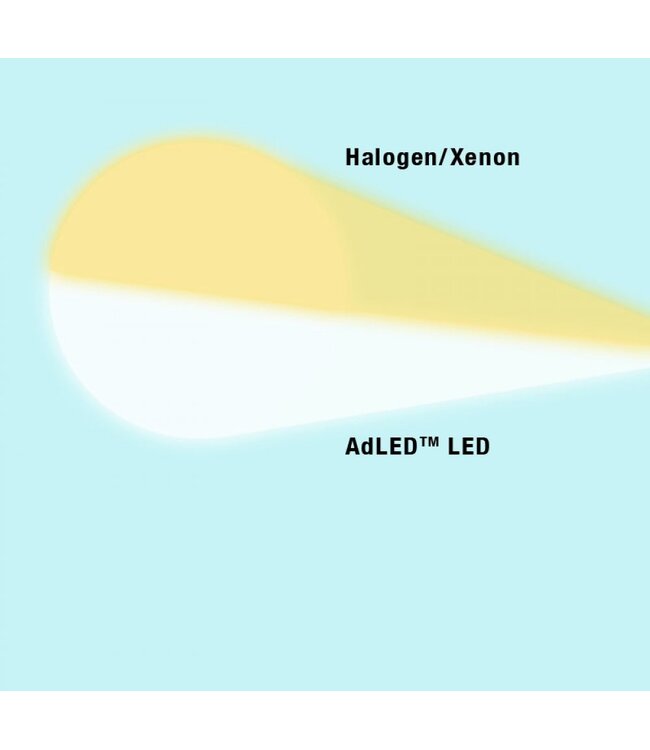

Choose from halogen/xenon or high-performance AdLED illumination
Two-year warranty on instrument, lifetime warranty on AdLED lamp
89 viewing lenses from -44 to +45 in single step
28 aperture/filter combinations for improved diagnostic capability
Secondary focusing wheel with zero retention for quick correction of ametropias, provides virtually unlimited fine focus or fast focus in lieu of the 89 viewing lenses
The addition of a Karo (grid) aperture that allows for easier transfer of observations to standard Karo (graph) paper

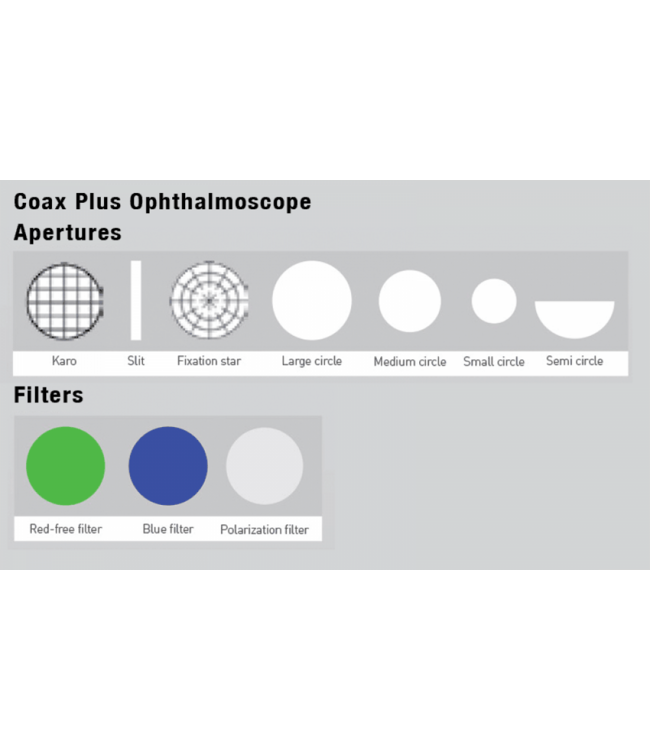

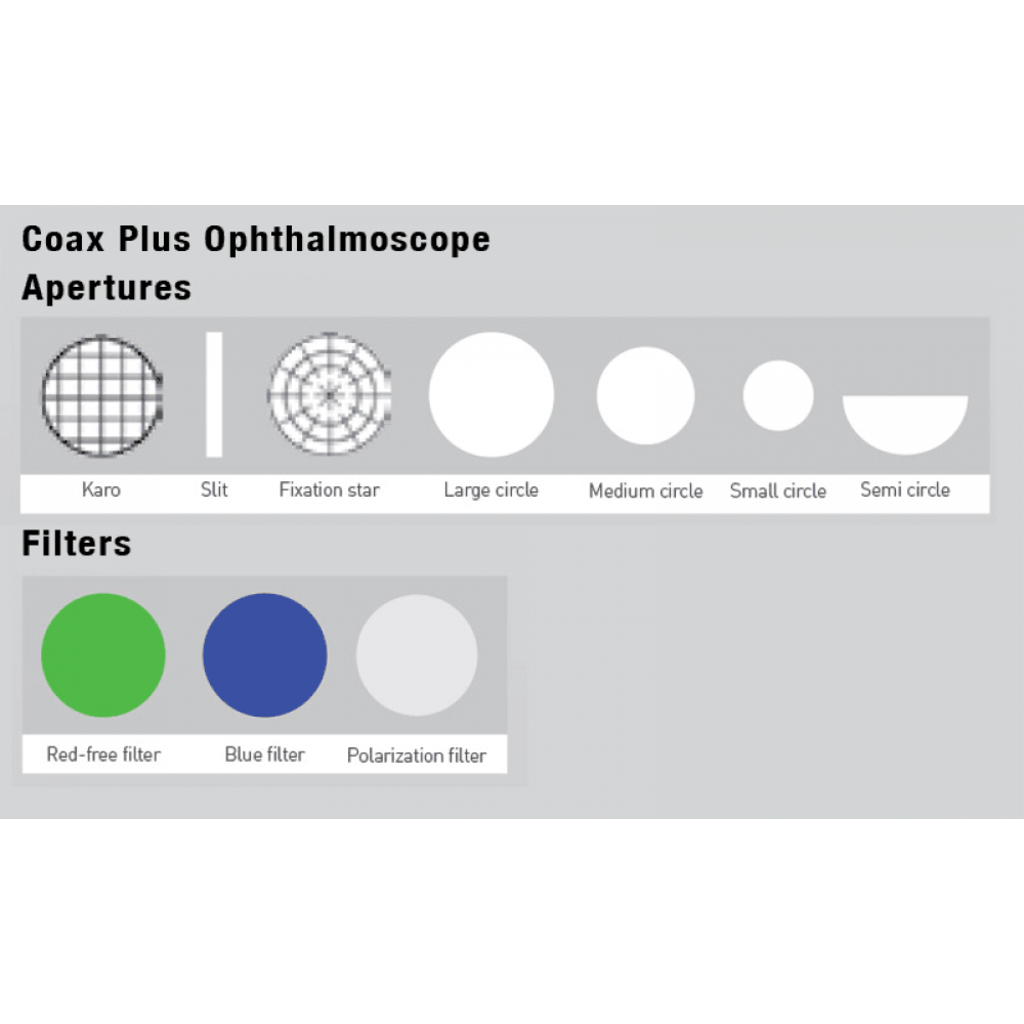

6 apertures include:

Slit – used to help determine levels of tumors and lesions
Fixation – has graduated crosshairs for measuring eccentric fixation or locating lesions
Large – standard aperture for a dilated pupil and general examination of the eye
Small – provides excellent view of fundus through an undilated pupil
Micro spot – allows quick entry into small, undilated pupils
Half moon – provides a combination of depth perception and field of view
3 filters (plus neutral) include:

Red free – excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers
Cobalt – used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
Polarizing – virtually eliminates corneal reflection

Wall transformer power supply features:

Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced

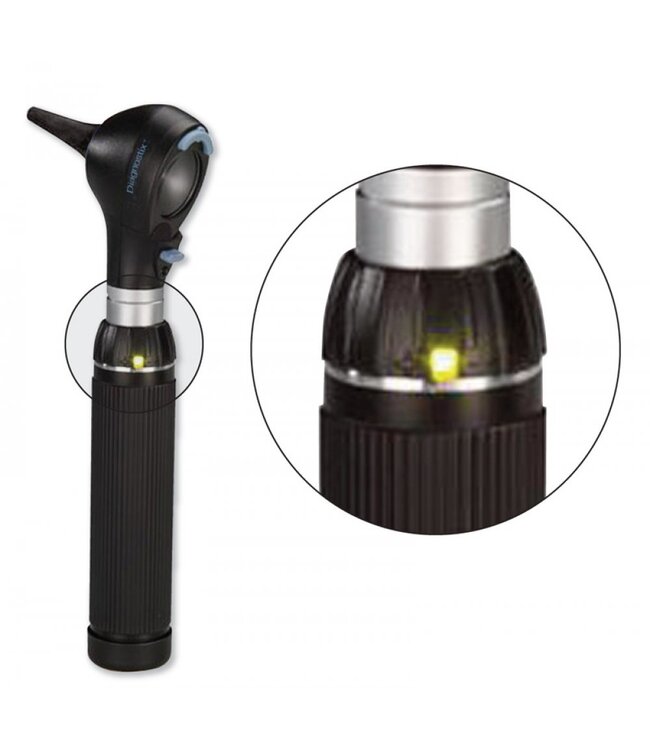

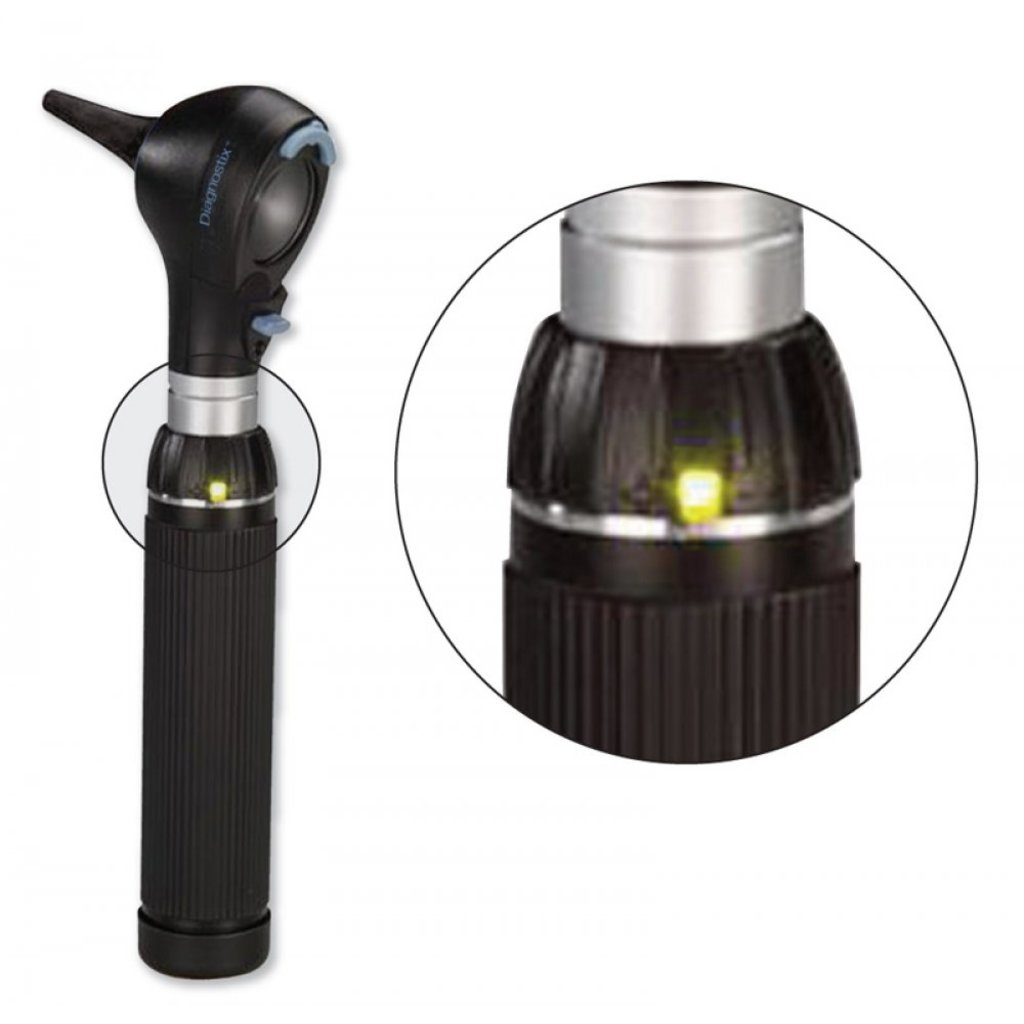

Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip
Adtronic electronic rheostatic light intensity control provides infinite continuous control
Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled
Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads
Base unit contains power switch and one handle
Up to three single-handle extension units can be added
Easy to install with included bracket or may be mounted to our wallboard systems
Available in 120V or 230V power supply with Euro plug
UL approved
Five-year warranty on wall transformer
