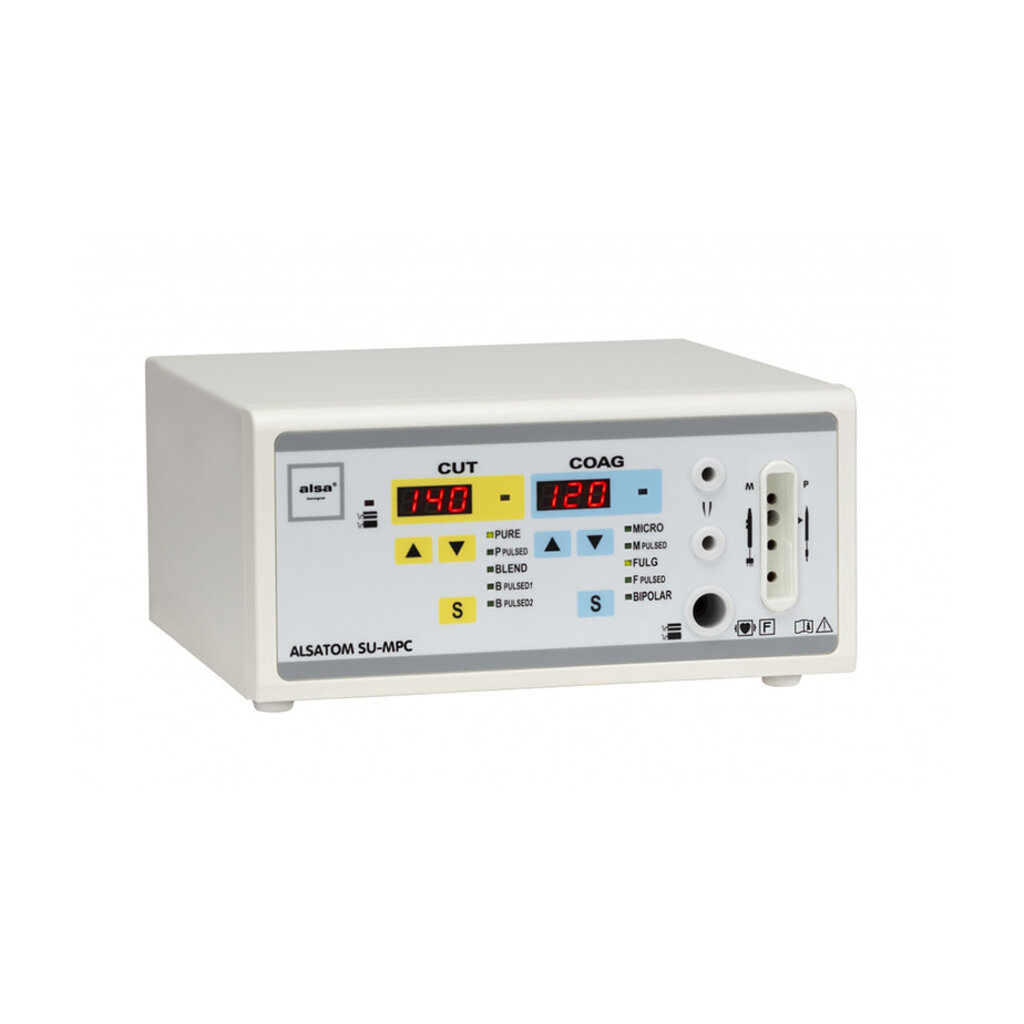

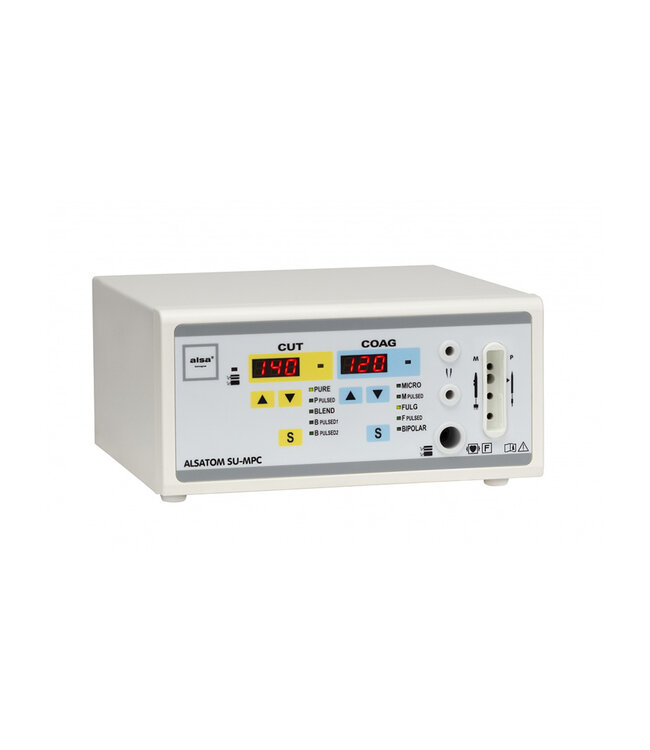

The Alsatom SU 140MPC is a monopolar and bipolar electro coagulator. Using the supplied neutral electrode plate and the button, loop and lance electrode, you can easily cauterize blood vessels and remove warts. Read more.
But the coagulator also proves its worth in the gynaecological, dermatological and dental fields.
The Alsatom SU 140 MPC has 3 different settings (Pure cut / Blend cut / Coagulation) for various applications.
The power is also adjustable.
For safety reasons, a sound tone is audible during coagulation. Although the Alsatom can also be used bipolar, the accessories for this must be purchased separately.
Only accessories for monopolar use are included.
What is the difference between the Alsatom SU-100-MPC and SU-140-MPC coagulator?
The Alsatom SU-140-MPC coagulator has the same output power as the SU100-MPC model, but is more complete in terms of its applications. In fact, it has two separate control buttons and two displays, for independently setting the power for cutting and coagulation. You can also choose to operate it with a foot pedal or use a fingertip switched (cutting/coagulating) electrode handle.
The Alsatom MPC System is a new generation of electrosurgery devices developed using digital technology. The process is controlled by a microprocessor, the most modern of its kind and the only one capable of guaranteeing applications required for the surgical procedure and meeting the highest safety requirements currently imposed on this type of device (IEC 60601-2-2 III ed., European Standard EN)
Technical specifications of the Alsatom SU-140-MPC coagulator
Compliant with standards IEC601-1 and IEC60601 certified CE 0051
Operating frequency: 475 kHz
Mains: 220V 260VA
Operation by microprocessor with self-diagnostic function, automatic dynamic
Dimensions: L23xP24xH10 cm
Weight: 4.75 Kg
Warranty: 1 year
Operation by a double pedal: cutting/coagulation
Possibility of a manual control stick
5 operating modes: (W) - (ohm) - (V) - CF CUT: 140W - 500 ohm - 1200V - CF1.7 BLEND 120W - 500 ohm - 1450V - CF2.8 COAG 120W - 500 ohm - 2770V - CF6.9 COAG micro 60W - 200 ohm - 1420V - CF2.8 BIP COAG 100W - 1 00 ohms - 400V - CF1.4

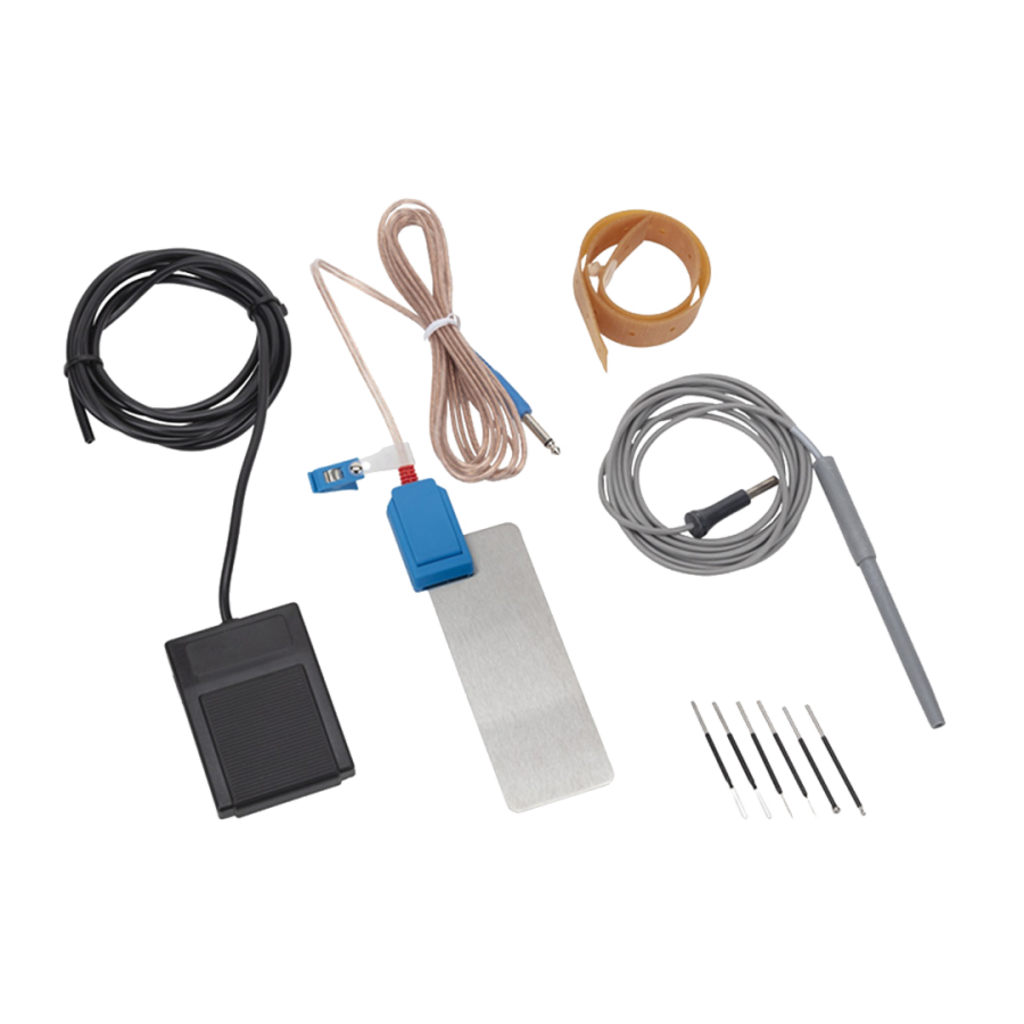

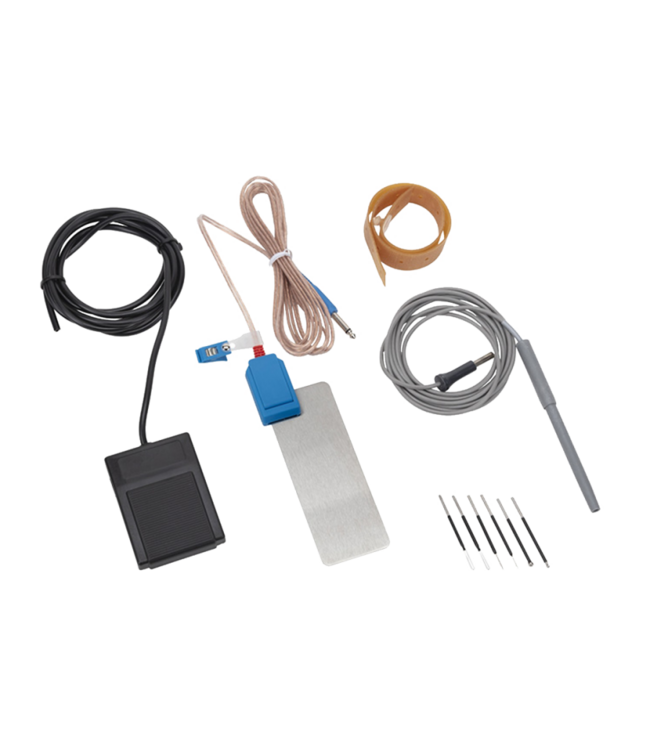

Supplied monopolar accessories: pneumatic foot pedal, handle, neutral electrode with mounting strap, knife, thin needle, thick needle and ball electrode in 2mm and 4mm.
Optional:

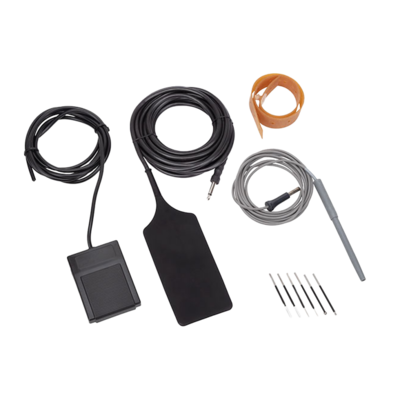

NP/GP electrode in flexible conductive rubber (part of configuration B700/B)
