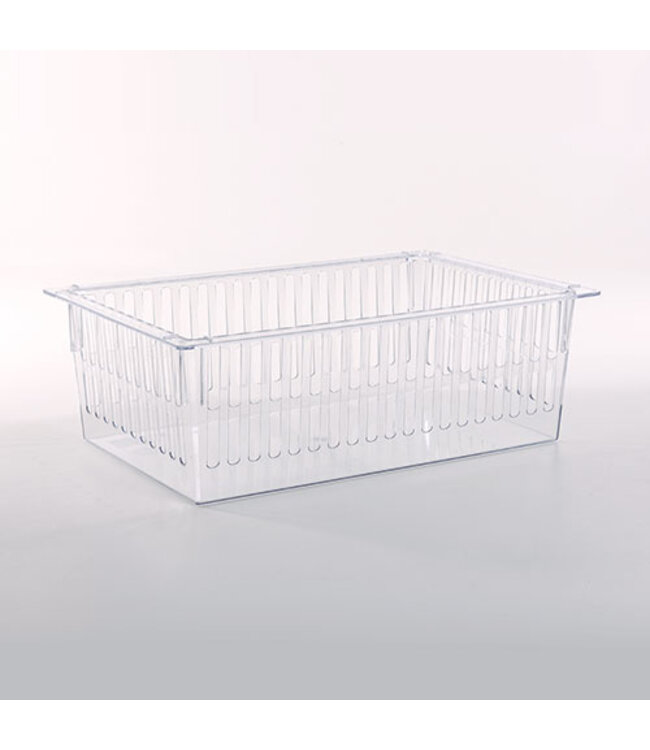

Belintra PC modules & manden type B

Price on request
Our injection-molded polycarbonate (PC) modules and baskets score excellent in terms of impact resistance, high strength and transparency

This through a careful raw material and material selection
in combination with continuous quality enforcement
during the production process.

The standard ISO external dimensions, 600 x 400
mm, make the modules interchangeable
are in all storage and transport systems, care medication trolleys. The modular bins are available in heights of 50 and 100 mm.

They can be subdivided by means of corresponding
dividers. These modules are the most important
building block for introducing FIFO

❱❱ Technical
Polycarbonate (PC) has high-quality mechanical properties, superior to ABS, Acrylic or Polypropylene.
These modules have a load capacity of 35 kg and are extremely resistant to breakage under a sudden heavy load.

❱❱ Ergonomics
The modules offer a clear and ergonomic solution, taking into account space-saving aspects.
The high transparency makes it easy for the user to perceive the content.
The PC modules form the basis of the logistics system. They are used for the storage and transport of medication and goods and are interchangeable between storage systems and carts.

❱❱ Hygiene
Polycarbonate has a temperature tolerance of -40 ° C to + 120 ° C, these can be cleaned up to 120 °.
If necessary, the baskets can be cleaned in a steam tunnel.

❱❱ Built-in stop
The modules and baskets are cast from 1 piece including the double stop, this guarantees a very solid stop function and does not require additional assembly. The stops work perfectly in the walls provided in the modular storage and transport systems.
These grid walls have a slight recess so that the baskets and bins with built-in stop can be tilted slightly (10 °) for a better overview of the content.

❱❱ PC dividers
The dividers of the baskets click into the open side walls, making them very firmly attached. The dividers of the closed modules slide in grooves.
The PC dividers for the modules can be shortened as desired to achieve various compartments. The dividers are then fixed to each other by means of a T-connection.

❱❱ Shape
The modules and baskets have a flat bearing edge to slide smoothly over the runners of cabinets, carts and racks. Because the side walls have a minimal clearance angle, there is no loss of volume.
The modules have a closed bottom to protect against spilled liquids, so that small materials cannot fall out of the basket. Baskets of the same length and width can be stacked together
